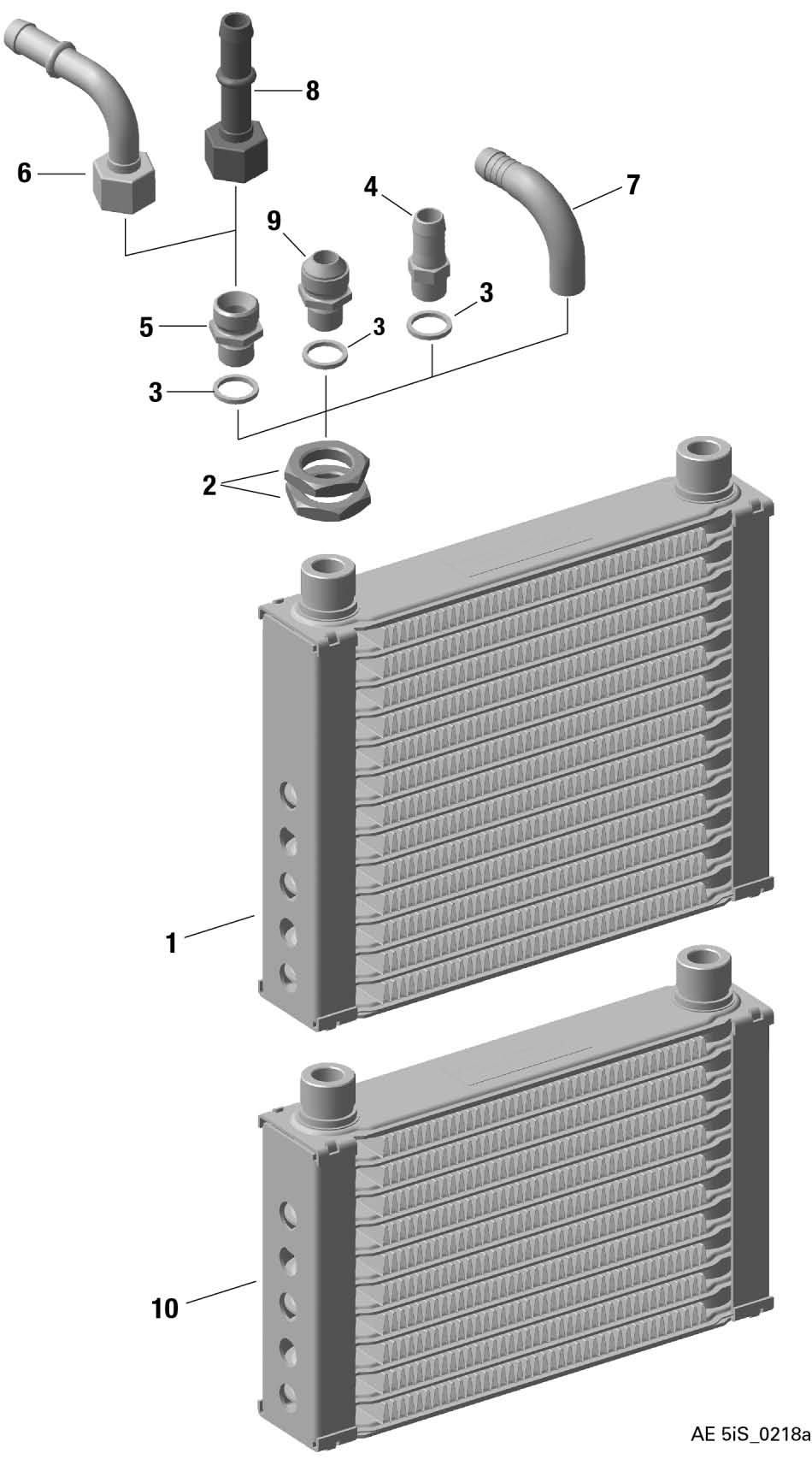

fig. 79-20-00-d
OIL RADIATOR For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-4 | 886013 | Oilcooler Lg - Metric Connections | 919600 | Add to Cart |
| 1 | 886015 | Oilcooler Lg Unf Connections | 1054700 | Add to Cart |
| 2 | 242873 | Hex Nut M22 X 1,5 H=6 | 22300 | Add to Cart |
| 3 | 230387 | Gasket Ring 14,2/18/2 | 1600 | Add to Cart |
| 4 | 840461 | Nipple 13,2/9,5-m14x1,5 | 53000 | Add to Cart |
| 5 | 956577 | Adaptor M 18 X 1.5 / M14 X 1.5 | 147500 | Add to Cart |
| 6 | 956581 | 956 581 Use 956 580 | 0 | Add to Cart |
| 7 | 924585 | Angular Tube M14x1,5 | 100500 | Add to Cart |
| 8 | 956610 | Hose Nipple With Union Nut | 525000 | Add to Cart |
