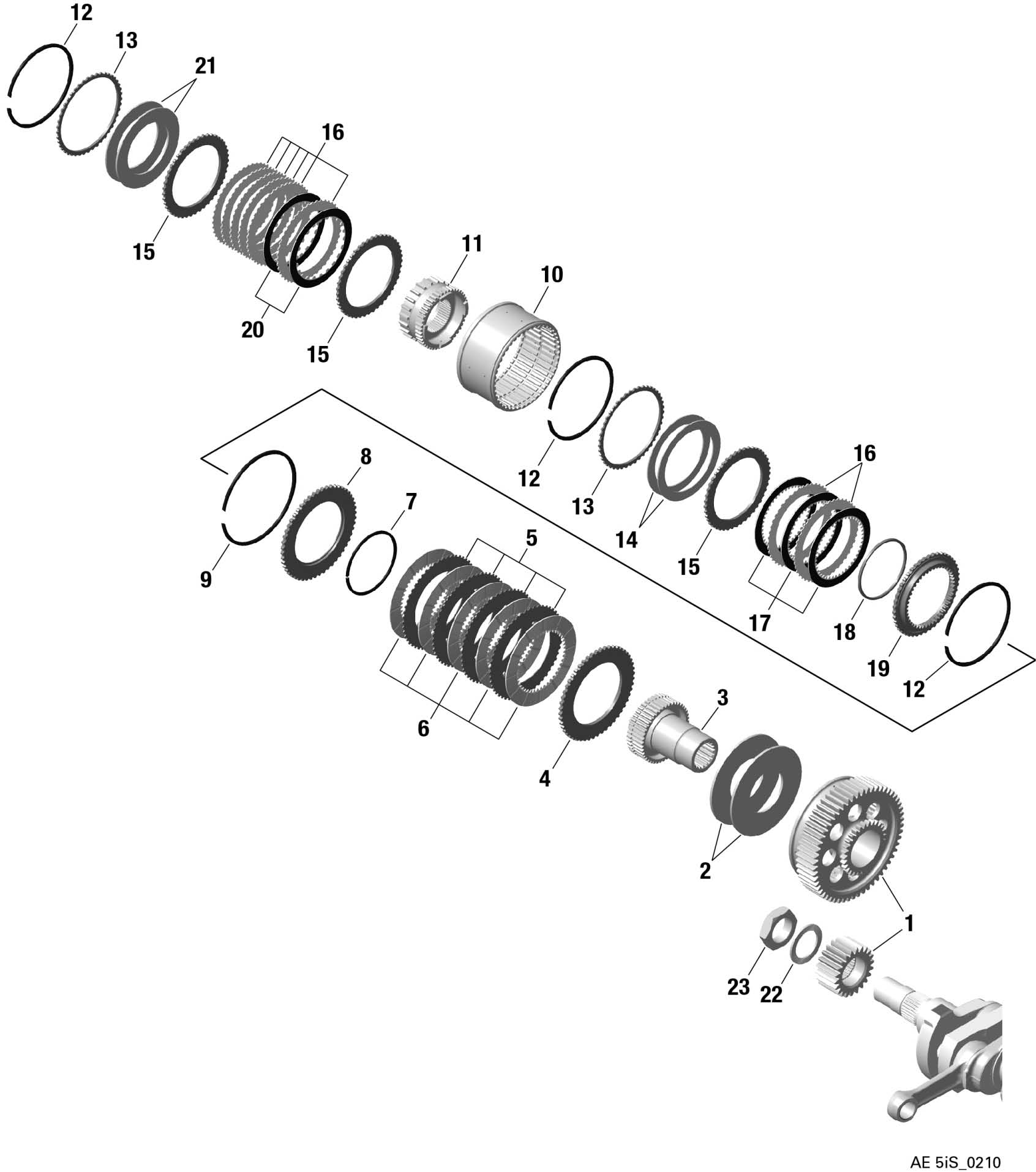

fig. 72-10-00-b
OVERLOAD CLUTCH For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-9 | 958414 | 958 414 Use 958 425 | 12293600 | Add to Cart |
| 1 | 886081 | Gear Set I 2,54 | 7156900 | Add to Cart |
| 2 | 938092 | Disk Spring 102x49x2.8 | 737100 | Add to Cart |
| 3 | 837233 | Intermediate Shaft | 3414800 | Add to Cart |
| 4 | 958400 | Steel Friction Plate 4.0 Mm | 862500 | Add to Cart |
| 5 | 958160 | Steel Friction Plate 1.0 | 28400 | Add to Cart |
| 6 | 958176 | Sinter Friction Plate 1.8 Mm | 1018100 | Add to Cart |
| 7 | 945080 | Circlip Sw 68 | 6700 | Add to Cart |
| 8 | 958402 | Steel Friction Plate 4,0 Mm | 538500 | Add to Cart |
| 9 | 945075 | Circlip Sb 105 | 14400 | Add to Cart |
| 10–21 | 958419 | Damping Clutch Assy | 10056400 | Add to Cart |
| 10 | 958042 | Clutch Drum | 1430700 | Add to Cart |
| 11 | 958022 | Clutch Hub | 2551000 | Add to Cart |
| 12 | 945070 | Circlip Sb 93 | 19100 | Add to Cart |
| 13 | 927021 | Support Ring | 538100 | Add to Cart |
| 14 | 938098 | Disk Spring 91.5x71x1.5 | 708500 | Add to Cart |
| 15 | 959420 | Steel Friction Plate 3.0 Mm | 407800 | Add to Cart |
| 16 | 958932 | Steel Friction Plate 1.0 Mm | 30100 | Add to Cart |
| 17 | 958993 | Friction Plate 1.54 Mm | 517700 | Add to Cart |
| 18 | 847895 | Spacer Ring 69/64.1/3.0 | 188500 | Add to Cart |
| 19 | 0 | Add to Cart | ||
| 20 | 958994 | Friction Plate 1.54 Mm | 517700 | Add to Cart |
| 21 | 938099 | Disk Spring 91.5x60x2.1 | 704000 | Add to Cart |
| 22 | 845431 | Friction Washer Vs30 | 15700 | Add to Cart |
| 23 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 115500 | Add to Cart |
| 0 | Add to Cart |
