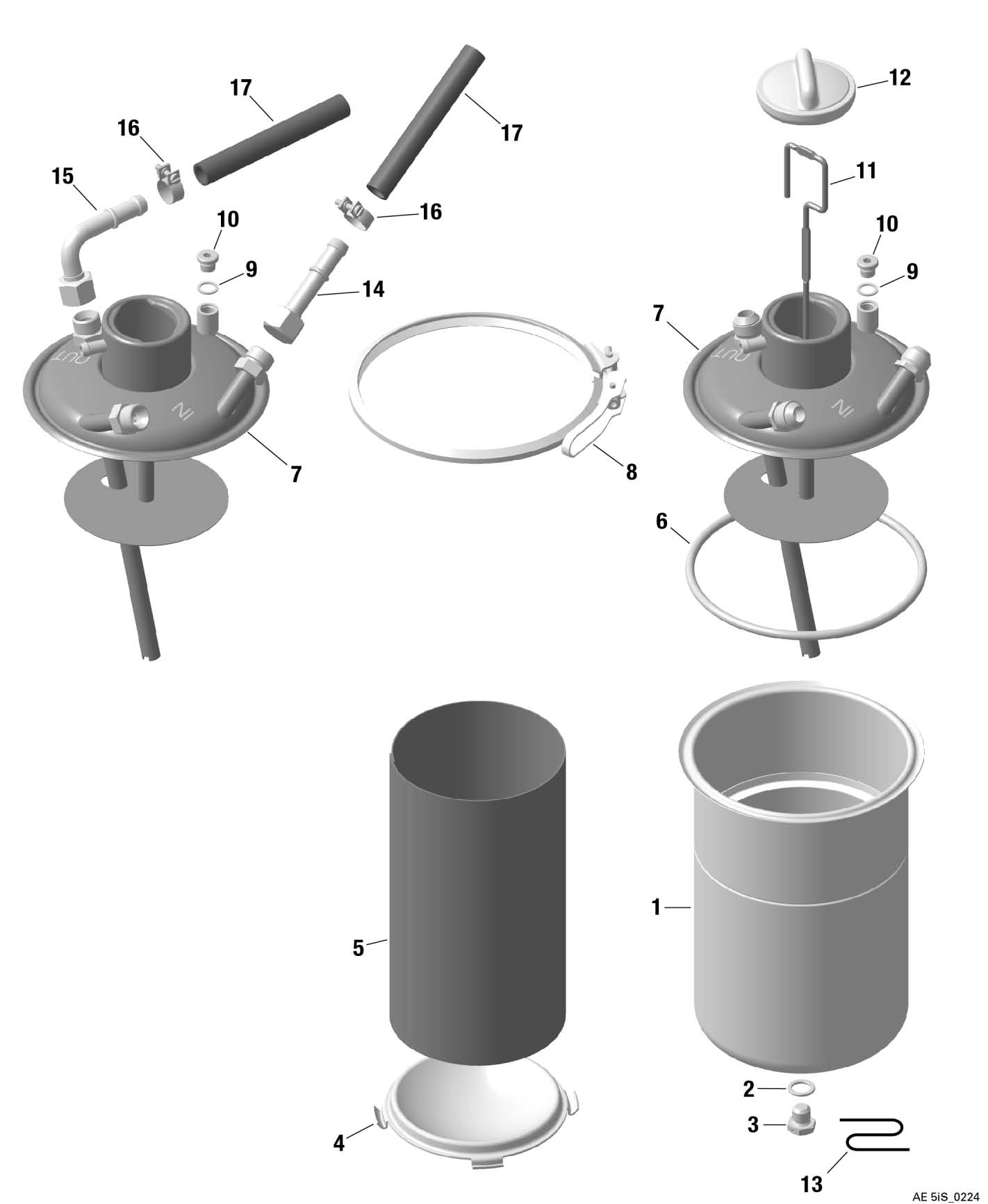

fig. 79-20-00
OIL TANK For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-12 | 656222 | Oil Tank Assy Unf Large | 7836800 | Add to Cart |
| 1-12 | 656852 | Oil Tank Assy. Unf 915is | 4577700 | Add to Cart |
| 1-12 | 656226 | Oil Tank Assy - Metric | 4649600 | Add to Cart |
| 1 | 0 | Add to Cart | ||
| 1 | 0 | Add to Cart | ||
| 2 | 250010 | Gasket Ring C 12x18 | 910 | Add to Cart |
| 3 | 241408 | Hex. Screw M12x12 | 107000 | Add to Cart |
| 4 | 656861 | Partition 2 | 158900 | Add to Cart |
| 5 | 956204 | Baffle Insert | 235700 | Add to Cart |
| 5 | 0 | Add to Cart | ||
| 6 | 850491 | O-ring 145x6 | 36000 | Add to Cart |
| 7 | 0 | Add to Cart | ||
| 7 | 0 | Add to Cart | ||
| 7 | 0 | Add to Cart | ||
| 8 | 951817 | Profile Clamp 163 | 443800 | Add to Cart |
| 9 | 230150 | Gasket Ring 10x14 A Din 7603 | 370 | Add to Cart |
| 10 | 641733 | Plug Screw M10x1 | 38200 | Add to Cart |
| 11 | 0 | Add to Cart | ||
| 12 | 974647 | Oil Tank Cover, Without Venting | 151900 | Add to Cart |
| 12 | 974650 | Oil Tank Cover Kpl | 962500 | Add to Cart |
| 13 | 297555 | Please Pick Up Locally | 0 | Add to Cart |
| 14 | 956610 | Hose Nipple With Union Nut | 525000 | Add to Cart |
| 15 | 956581 | 956 581 Use 956 580 | 0 | Add to Cart |
| 16 | 853515 | Clamp 16/9 | 9500 | Add to Cart |
| 17 | 956394 | Oil Line Per Meter 12x19 | 351300 | Add to Cart |
| 0 | Add to Cart |
