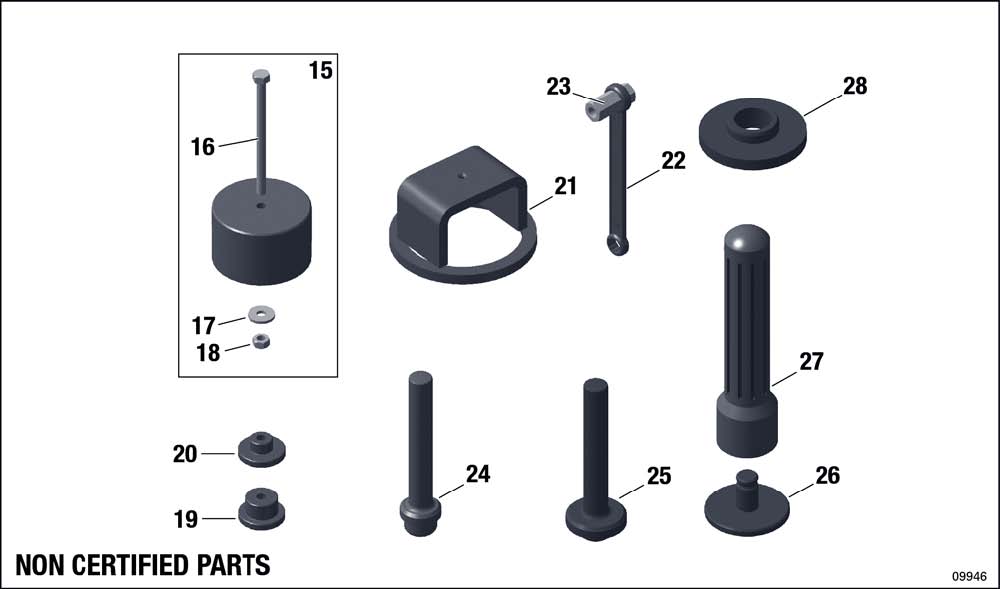

fig. 00-00-09
TOOLS P9 09946 For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 15-18 | 876489 | Puller Assy., | 360500 | Add to Cart |
| 16 | 941730 | Hex.screw M6x80 | 2200 | Add to Cart |
| 17 | 827305 | Washer 6,2/18/2 | 4900 | Add to Cart |
| 18 | 242214 | Hex.nut M6 | 320 | Add to Cart |
| 19 | 877597 | Press-in Mushroom | 192000 | Add to Cart |
| 20 | 877595 | Press-in Mushroom | 236300 | Add to Cart |
| 21 | 876885 | Mounting Yoke | 876800 | Add to Cart |
| 22 | 876470 | Ring Spanner 10/13 | 9700 | Add to Cart |
| 23 | 242661 | Nla | 0 | Add to Cart |
| 24 | 276332 | Insertion Jig Assy., | 156200 | Add to Cart |
| 25 | 877276 | Insertion Jig Assy., | 285400 | Add to Cart |
| 26 | 876518 | Insertion Jig | 523000 | Add to Cart |
| 27 | 877650 | Handle For Insertion Jig | 517400 | Add to Cart |
| 28 | 877320 | Press-in Ring | 199900 | Add to Cart |
| 0 | Add to Cart |
