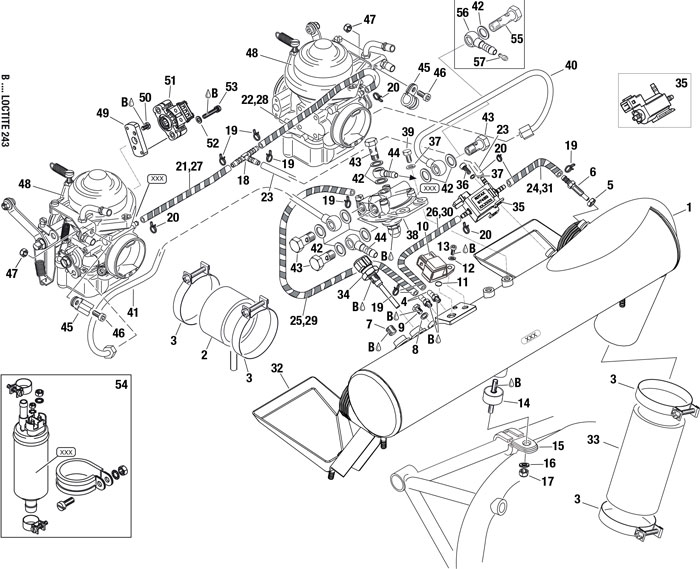

fig. 73-10-00-3
AIRBOX ASSY., 3-WAY SOLENOID VALVE ASSY., FUEL PRESSURE REGULATOR ASSY. For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-33 | 667574 | Airbox Assy. | 6531700 | Add to Cart |
| 2 | 860985 | Connecting Hose 35 Mm | 76000 | Add to Cart |
| 3 | 853595 | Clamp 59 | 21900 | Add to Cart |
| 4 | 940551 | Hose Nipple, M6 | 122300 | Add to Cart |
| 5 | 242032 | Hex.nut Bm6 | 370 | Add to Cart |
| 6 | 940555 | Hose Nipple M6 | 189800 | Add to Cart |
| 7 | 240481 | Plug Screw 1/8-27npt | 15800 | Add to Cart |
| 8 | 230415 | Gasket Ring A 6x10 Din 7603 | 500 | Add to Cart |
| 9 | 641071 | Hex.screw Iso 4017-m6x6-8.8 | 2000 | Add to Cart |
| 10 | 966502 | Airbox Pressure Sensor | 677700 | Add to Cart |
| 11 | 430205 | O-ring 6,4x1,8 | 780 | Add to Cart |
| 12 | 244216 | Washer 6,2/14/1 | 4100 | Add to Cart |
| 13 | 840392 | Allen Screw M6x14 Din 912 | 1200 | Add to Cart |
| 14 | 960151 | Rubber Puffer 20x15xm6 | 103200 | Add to Cart |
| 15 | 853010 | Cable Clamp 32/m6 | 140100 | Add to Cart |
| 16 | 927941 | Washer 6,0/12/1 | 500 | Add to Cart |
| 17 | 842041 | Lock Nut M6 | 370 | Add to Cart |
| 18 | 874270 | T-piece 6-6-6 | 17700 | Add to Cart |
| 19 | 851370 | Clamp 8 | 10700 | Add to Cart |
| 20 | 951595 | Clamp 7,3 | 8900 | Add to Cart |
| 21-26 | 860660 | Hose 4x7 Per Meter | 165800 | Add to Cart |
| 21 | 0 | Add to Cart | ||
| 22 | 0 | Add to Cart | ||
| 22 | 0 | Add to Cart | ||
| 23 | 0 | Add to Cart | ||
| 23 | 0 | Add to Cart | ||
| 24 | 0 | Add to Cart | ||
| 24 | 0 | Add to Cart | ||
| 25 | 0 | Add to Cart | ||
| 26 | 0 | Add to Cart | ||
| 26 | 0 | Add to Cart | ||
| 27-31 | 966060 | Spiral Hose & Band | 76000 | Add to Cart |
| 28 | 0 | Add to Cart | ||
| 29 | 0 | Add to Cart | ||
| 30 | 0 | Add to Cart | ||
| 31 | 0 | Add to Cart | ||
| 32 | 874680 | Drip Tray Set | 533200 | Add to Cart |
| 33 | 860984 | Air Intake Hose | 200900 | Add to Cart |
| 34 | 966435 | Temp Sensor | 1566200 | Add to Cart |
| 34 | 966430 | Resistance Thermometer | 1667400 | Add to Cart |
| 35 | 881040 | 3-way Solenoid Valve Retrofit Kit | 2223700 | Add to Cart |
| 35 | 881040 | 3-way Solenoid Valve Retrofit Kit | 2223700 | Add to Cart |
| 35 | 881040 | 3-way Solenoid Valve Retrofit Kit | 2223700 | Add to Cart |
| 36 | 840392 | Allen Screw M6x14 Din 912 | 1200 | Add to Cart |
| 37 | 945831 | Lock Washer A6 Din 128 | 370 | Add to Cart |
| 38 | 887130 | Fuel Pressure Regulator Assy. | 1649700 | Add to Cart |
| 39 | 241187 | Hex.screw M6x16 | 370 | Add to Cart |
| 40 | 874290 | Fuel Hose Assy. | 570800 | Add to Cart |
| 41 | 874280 | Fuel Hose Assy. | 650100 | Add to Cart |
| 42 | 230150 | Gasket Ring 10x14 A Din 7603 | 370 | Add to Cart |
| 43 | 241073 | Banjo Bolt M10x1x19 | 151000 | Add to Cart |
| 44 | 956314 | Hose Nipple 4/6 Din7642 | 89500 | Add to Cart |
| 45 | 851116 | Cable Clamp 5/m5 | 120700 | Add to Cart |
| 46 | 241842 | Allen Screw M5x12 | 3100 | Add to Cart |
| 47 | 842032 | Lock Nuyt M5-6.6 | 370 | Add to Cart |
| 49 | 861931 | Adaptor For Tp | 329700 | Add to Cart |
| 50 | 640181 | Nla | 0 | Add to Cart |
| 51 | 966482 | Tp Sensor | 2298000 | Add to Cart |
| 52 | 944152 | Washer B 4,3 Din 4017 - M6x10 | 14600 | Add to Cart |
| 53 | 841030 | Combined Screw M4x22 | 5600 | Add to Cart |
| 54 | 881365 | Fuel Pump, Electric | 2962900 | Add to Cart |
| 55 | 940873 | 940 873 Use 241 072 | 0 | Add to Cart |
| 56 | 956314 | Hose Nipple 4/6 Din7642 | 89500 | Add to Cart |
| 57 | 963143 | Idle Jet 35 | 269300 | Add to Cart |
| 0 | Add to Cart |
