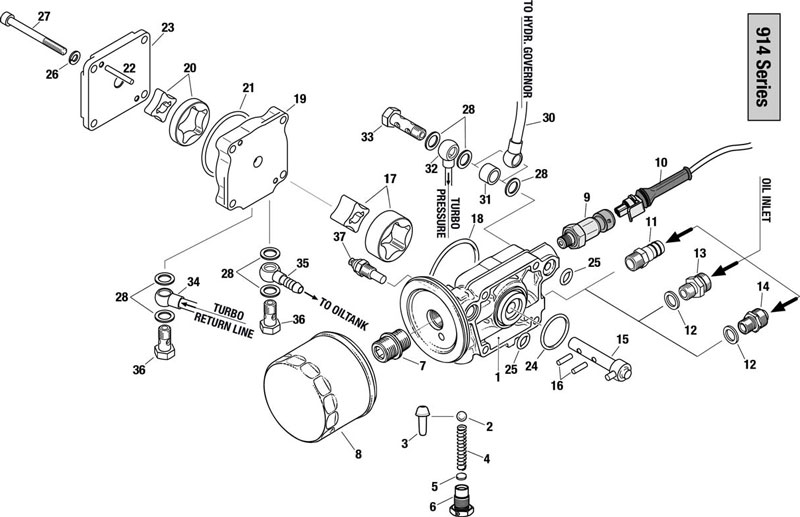

fig. 79-20-00-3
OIL PUMP ASSY., OIL FILTER, OIL TEMPERATURE SENSOR, OIL PRESSURE SENSOR For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 2 | 432681 | Ball 8,5 Mm | 3700 | Add to Cart |
| 3 | 857230 | Valve Piston | 101300 | Add to Cart |
| 4 | 838122 | Compression Spring L39,5 | 2200 | Add to Cart |
| 5 | 227055 | Shim 8,2x1,5 | 880 | Add to Cart |
| 6 | 841983 | Plug Screw M12x1 | 174400 | Add to Cart |
| 7 | 924424 | Oil Filter Nipple | 79800 | Add to Cart |
| 8 | 825016 | Oil Filter, Rotax | 58200 | Add to Cart |
| 9 | 456180 | Oil Pressure Sensor | 1269200 | Add to Cart |
| 10 | 864250 | Oil Pressure Sensor Wire Assy | 472600 | Add to Cart |
| 12 | 230387 | Gasket Ring 14,2/18/2 | 1400 | Add to Cart |
| 13 | 956577 | Adaptor M 18 X 1.5 / M14 X 1.5 | 128600 | Add to Cart |
| 14 | 956643 | Adaptor 3/4-16 Unf M14 X 1.5 | 143000 | Add to Cart |
| 15 | 837127 | Oil Pump Shaft Assy., | 234600 | Add to Cart |
| 15 | 837129 | Oil Pump Shaft Assy., | 108000 | Add to Cart |
| 17 | 956278 | Suction Inner And Outer Rotor | 86900 | Add to Cart |
| 18 | 430411 | O-ring 57-3 | 7400 | Add to Cart |
| 19 | 810592 | Oil Pump Housing | 1041100 | Add to Cart |
| 20 | 256346 | Pressure Inner And Outer Rotor | 77900 | Add to Cart |
| 21 | 430175 | O-ring 46x3 | 7400 | Add to Cart |
| 22 | 232432 | Needle Pin B, 4x29.8 | 1800 | Add to Cart |
| 16 | 232732 | Neele Pin 4 X 15,8 G2 | 1000 | Add to Cart |
| 23 | 911711 | Oil Pump Cover | 491200 | Add to Cart |
| 24 | 950410 | O-ring 30x2,5 | 4400 | Add to Cart |
| 25 | 250460 | O-ring 11-2,7 | 1800 | Add to Cart |
| 26 | 945831 | Lock Washer A6 Din 128 | 320 | Add to Cart |
| 26 | 827962 | Washer 6,4 Din 125 | 320 | Add to Cart |
| 27 | 241263 | Allen Screw M6x65 | 2700 | Add to Cart |
| 27 | 241762 | Allen Screw M6x50 | 1800 | Add to Cart |
| 28 | 230150 | Gasket Ring 10x14 A Din 7603 | 320 | Add to Cart |
| 29 | 641733 | Plug Screw M10x1 | 33300 | Add to Cart |
| 31 | 847228 | Spacer 10,5/15/10 | 43200 | Add to Cart |
| 35 | 956314 | Hose Nipple 4/6 Din7642 | 78000 | Add to Cart |
| 37 | 965531 | Temperature Sensor | 142700 | Add to Cart |
