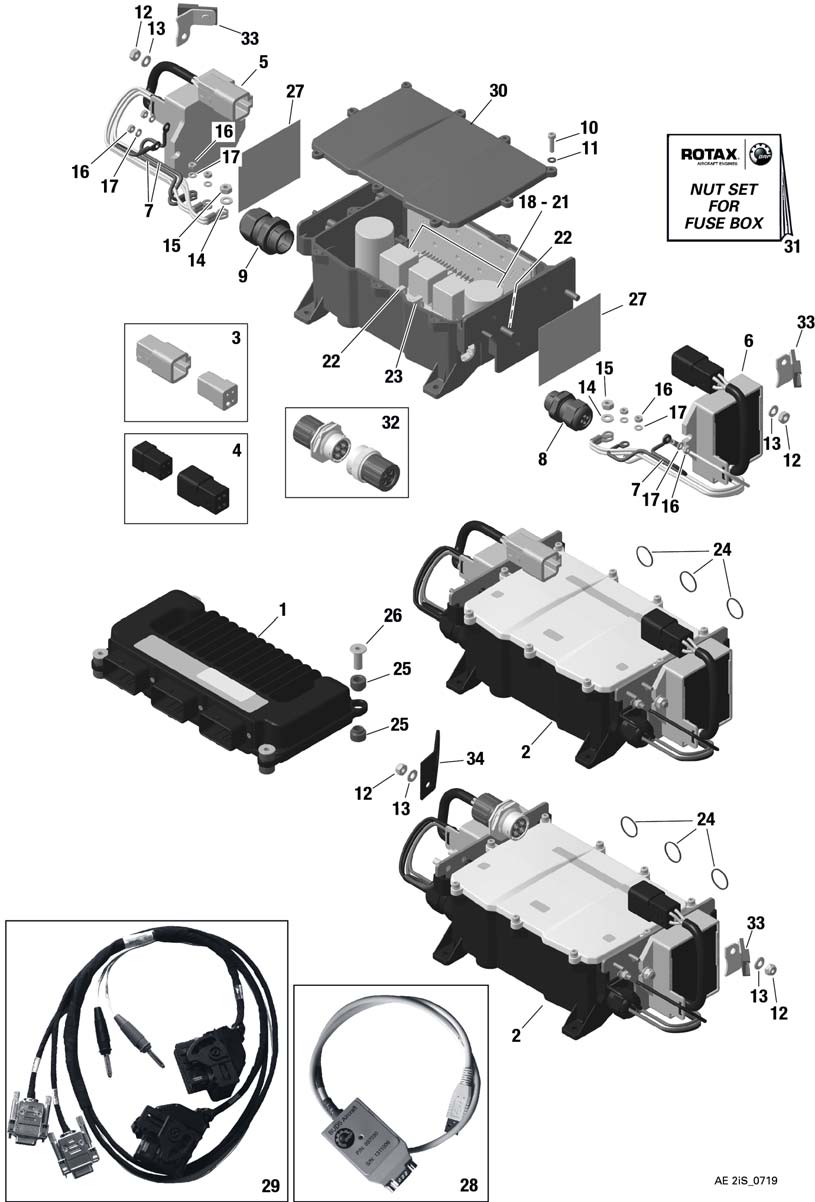

fig. 76-10-00-1
ENGINE CONTROL UNIT, FUSE BOX REGULATOR For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 0 | Add to Cart | ||
| 2 | 881325 | Fuse Box Packaged | 13341600 | Add to Cart |
| 3 | 866422 | Connector Set Grey | 522900 | Add to Cart |
| 4 | 866420 | Connector Set Black | 415100 | Add to Cart |
| 5 | 864395 | Regulator B - Connector Grey | 1766300 | Add to Cart |
| 6 | 864392 | Regulator A-connector Black | 1440900 | Add to Cart |
| 7 | 866440 | Mass Cable Assy. | 33000 | Add to Cart |
| 8 | 201370 | Skintop Click 20 | 36000 | Add to Cart |
| 9 | 201375 | Skintop Click 25 | 19200 | Add to Cart |
| 10 | 840763 | Allen Screw M4x16 Iso 4762-a2-70 | 9500 | Add to Cart |
| 11 | 827230 | Plastic Washer M4 | 281400 | Add to Cart |
| 12 | 842042 | Lock Nut M6 | 1000 | Add to Cart |
| 13 | 244213 | Washer 6,4 | 500 | Add to Cart |
| 14 | 927573 | Washer 5,3 Din 125 | 2000 | Add to Cart |
| 15 | 842033 | Lock Nut M5 | 500 | Add to Cart |
| 16 | 242538 | Lock Nut Din 985-m4-a2 | 500 | Add to Cart |
| 17 | 244078 | Washer 4,3 Din 125 | 1000 | Add to Cart |
| 18- | 866450 | Mini-fuse 2a | 10400 | Add to Cart |
| 19- | 866452 | Mini-fuse 5a | 8100 | Add to Cart |
| 20- | 866454 | Mini-fuse 7,5a | 8100 | Add to Cart |
| 21- | 866456 | Mini-fuse 10a | 18800 | Add to Cart |
| 22- | 866490 | Ato-fuse 20a | 10400 | Add to Cart |
| 23- | 866492 | Ato-fuse 35a | 10400 | Add to Cart |
| 24 | 931110 | O Ring | 35300 | Add to Cart |
| 25 | 201460 | Rubber Sleeve | 85100 | Add to Cart |
| 26 | 947540 | Spacer | 98200 | Add to Cart |
| 27 | 282870 | Heat Plate | 77000 | Add to Cart |
| 28 | 864021 | Ecu Reader Level 1 | 6524200 | Add to Cart |
| 29 | 864280 | Service Wiring Harness Assy. | 853400 | Add to Cart |
| 30 | 201690 | Cover, Fuse Box | 772000 | Add to Cart |
| 31 | 881555 | Nut Set Fuse Box | 656900 | Add to Cart |
| 32 | 481510 | Connector Set Stator Lane B | 1553500 | Add to Cart |
| 33 | 951983 | Connector Bracket | 168000 | Add to Cart |
| 34 | 951981 | Connector Bracket | 232300 | Add to Cart |
