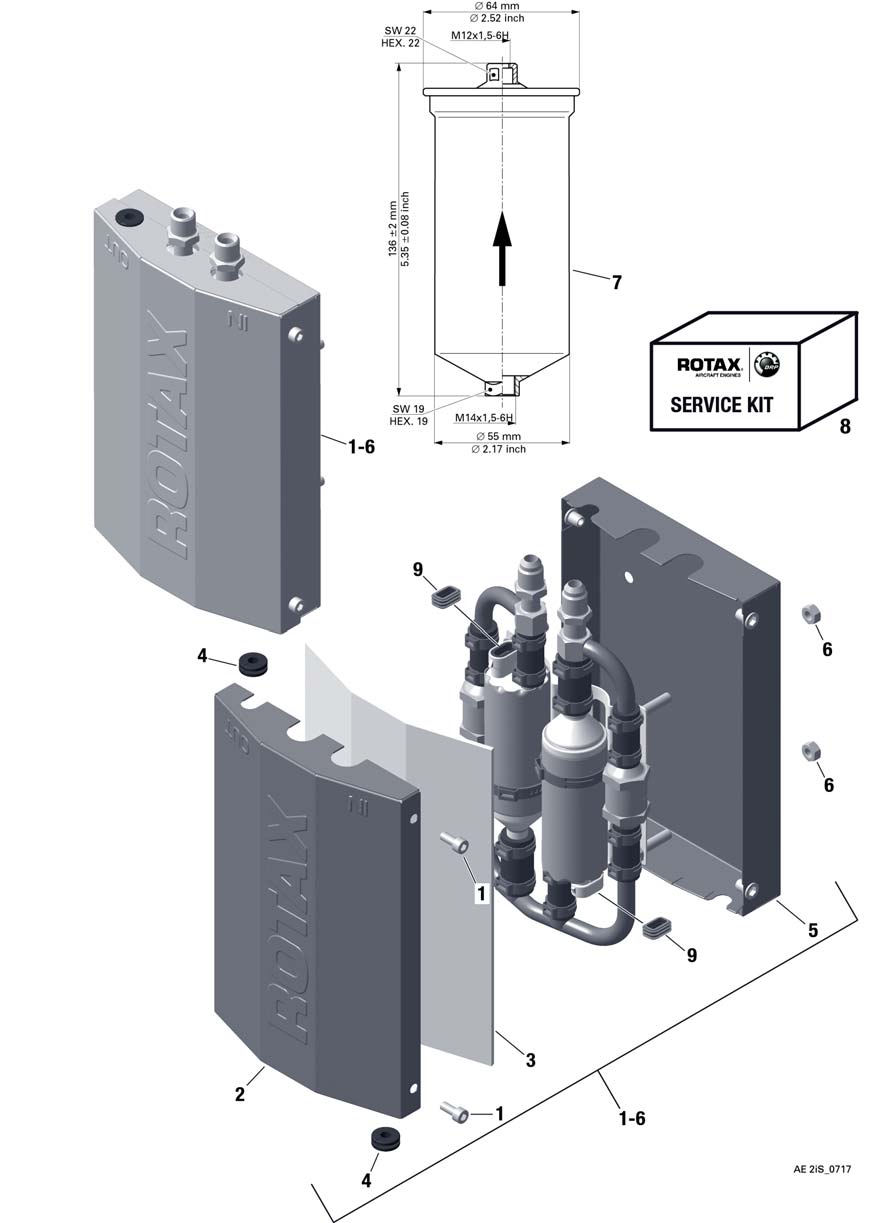

fig. 73-10-00-4
FUEL PUMP ASSY. COVER For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-6 | 889697 | Fuel Pump Assy - Unf | 7460100 | Add to Cart |
| 1-6 | 889699 | Fuel Pump Assy. Metric | 7467600 | Add to Cart |
| 1 | 640542 | Allen Screw M5x12 Din 912 | 310 | Add to Cart |
| 2 | 911790 | Cover | 218100 | Add to Cart |
| 3 | 975055 | Heat Protection Mat | 31400 | Add to Cart |
| 4 | 201160 | Rubber Grommet | 6200 | Add to Cart |
| 5 | 911700 | Housing | 224600 | Add to Cart |
| 6 | 242032 | Hex.nut Bm6 | 310 | Add to Cart |
| 7 | 874060 | Fuel Filter | 161400 | Add to Cart |
| 8 | 889537 | Fuel Pump Service Kit | 413000 | Add to Cart |
| 9 | 850620 | Connector Gasket | 23500 | Add to Cart |
