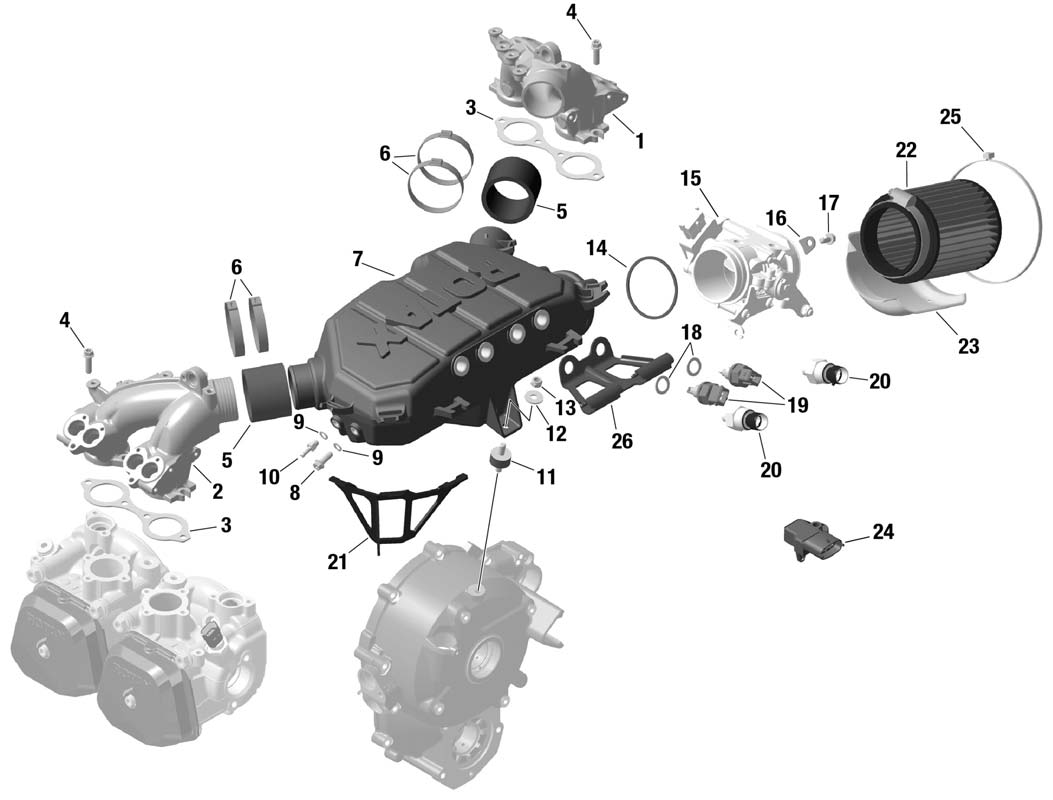

fig. 73-10-00-1
INTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 667400 | Intake Manifold 1/3 | 1693500 | Add to Cart |
| 2 | 667406 | Intake Manifold 2/4 | 1103600 | Add to Cart |
| 3 | 850091 | Isolating Flange | 22700 | Add to Cart |
| 4 | 440207 | Hex./torx-flange Screw M6x20-sw8/t30 | 1500 | Add to Cart |
| 5 | 460420 | Connecting Socket | 19200 | Add to Cart |
| 6 | 853028 | 1-ear-clamp 48,3-51,5 Mm | 13700 | Add to Cart |
| 7 | 667410 | Airbox | 3492300 | Add to Cart |
| 9 | 230415 | Gasket Ring A 6x10 Din 7603 | 500 | Add to Cart |
| 10 | 840670 | Hose Nipple M6 | 26100 | Add to Cart |
| 11 | 860700 | Rubber 20x10xm6 | 22700 | Add to Cart |
| 12 | 827968 | Washer 6,4 Din 9021 | 500 | Add to Cart |
| 13 | 842042 | Lock Nut M6 | 1000 | Add to Cart |
| 14 | 850020 | Rubber Ring | 9600 | Add to Cart |
| 15 | 685056 | Throttle Body Socket Assy. | 1586900 | Add to Cart |
| 16 | 953020 | Separating Plate | 3800 | Add to Cart |
| 17 | 440147 | Hex./torx-flange Screw M6x12-sw8/t30 | 2500 | Add to Cart |
| 18 | 250015 | Sealing Ring A12x18 Din 7603 | 0 | Add to Cart |
| 19 | 222421 | Temperature Sensor | 162200 | Add to Cart |
| 20 | 664364 | Pressure Sensor 2,0 | 1604900 | Add to Cart |
| 21 | 951560 | Connector Bracket | 143000 | Add to Cart |
| 22 | 825751 | Air Filter | 477300 | Add to Cart |
| 23 | 975100 | Heat Shield | 39700 | Add to Cart |
| 24 | 874654 | Pressure-/temp. Sensor | 1191000 | Add to Cart |
| 25 | 951500 | Clamp 381x4,8 Mm | 6600 | Add to Cart |
