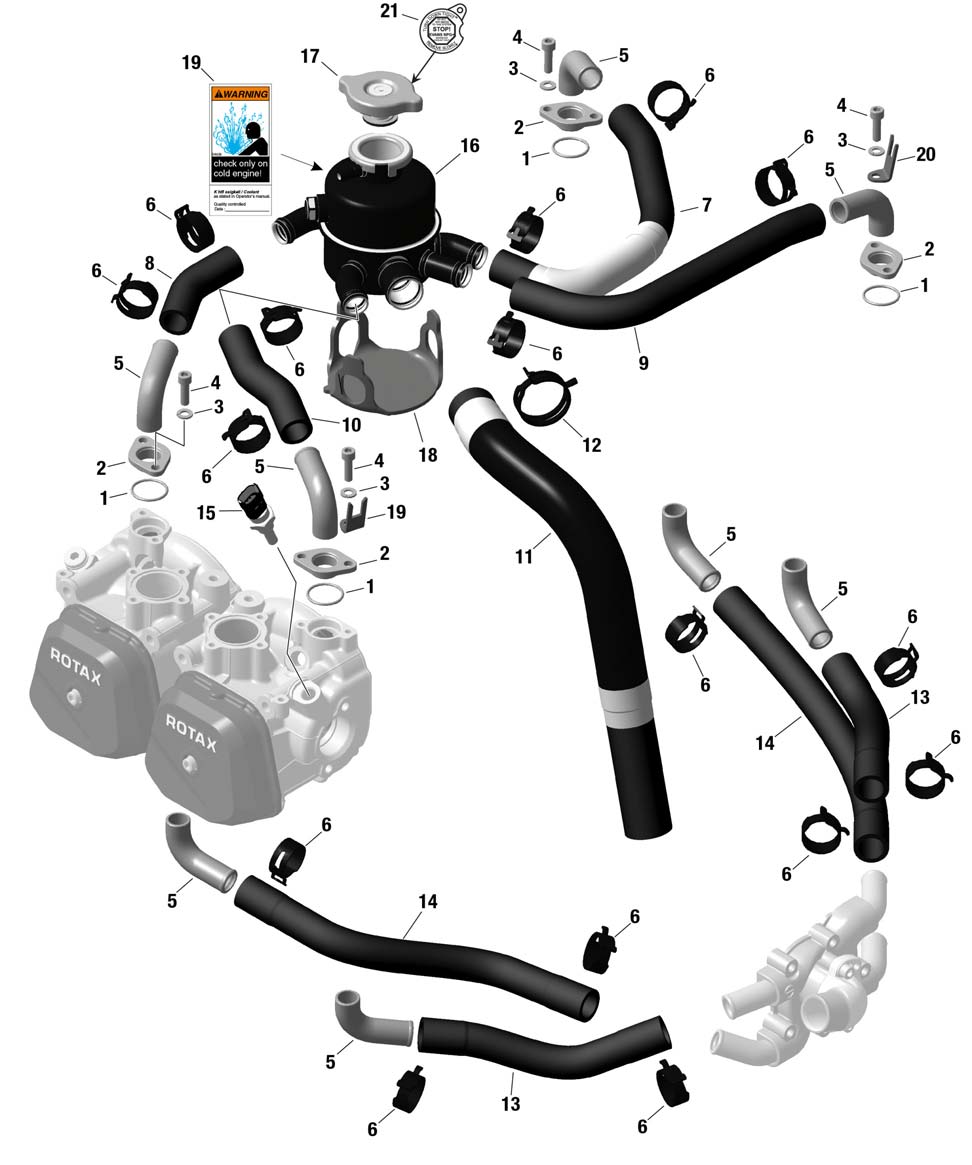

fig. 75-20-00-2
EXPANSION TANK WITH HOSES AND CONNECTIONS For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 950180 | O-ring 19-2 | 1500 | Add to Cart |
| 2 | 922303 | Flange | 49300 | Add to Cart |
| 3 | 827962 | Washer 6,4 Din 125 | 360 | Add to Cart |
| 4 | 241935 | Allen Screw M6x20 | 1100 | Add to Cart |
| 5 | 922236 | Bent Socket 80 Degrees | 61200 | Add to Cart |
| 6 | 851645 | Spring Type Clamp 25 | 7300 | Add to Cart |
| 7 | 822420 | Form Hose 1 | 64500 | Add to Cart |
| 8 | 822430 | Form Hose 2 | 14500 | Add to Cart |
| 9 | 822440 | Form Hose 3 | 62300 | Add to Cart |
| 10 | 822445 | Form Hose 4 | 30800 | Add to Cart |
| 11 | 822450 | Form Hose | 128700 | Add to Cart |
| 12 | 951350 | Self Compensating Clamp 35 | 22400 | Add to Cart |
| 13 | 922360 | 180 Mm Hose | 59300 | Add to Cart |
| 14 | 922362 | 280 Mm Hose | 87600 | Add to Cart |
| 15 | 965537 | Temperature Sensor | 735400 | Add to Cart |
| 16-19 | 922668 | Expansion Tank | 1178900 | Add to Cart |
| 17 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 148100 | Add to Cart |
| 18 | 860828 | Rubber Plate | 53200 | Add to Cart |
| 19 | 897506 | Warning Label | 9300 | Add to Cart |
| 20 | 951490 | Connector Bracket | 16400 | Add to Cart |
| 21 | 898490 | Warning Label Evans Coolant | 6500 | Add to Cart |
