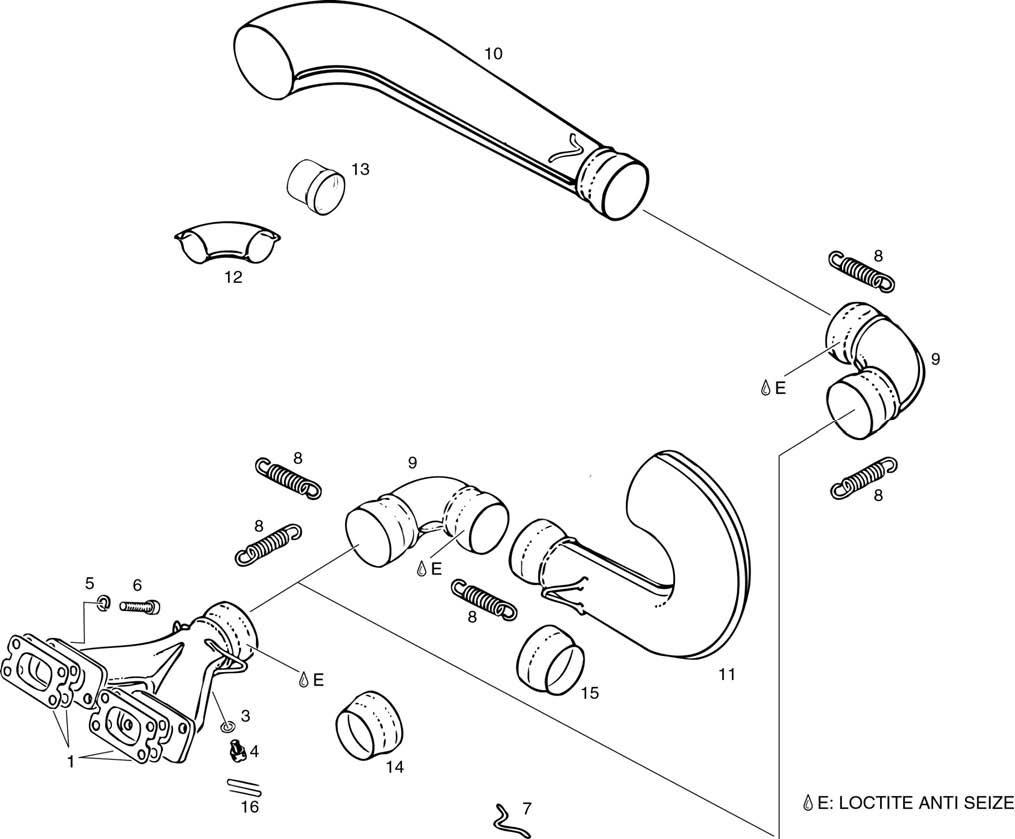

fig. 78-10-00-4
EXHAUST SYSTEMS SINGLE PARTS For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 850633 | Exhaust Gasket | 47000 | Add to Cart |
| 2a | 973121 | Ex. Mainfold W/egt Taps,582 | 1680300 | Add to Cart |
| 2b | 973123 | Exhaust Manifold Assy. | 2340800 | Add to Cart |
| 3 | 950141 | Gasket Ring A 8x13 Din 7603 | 910 | Add to Cart |
| 4 | 941617 | Capstan Screw M8x1x10 | 0 | Add to Cart |
| 5 | 945832 | Lock Washer A8 | 370 | Add to Cart |
| 6 | 840992 | Allen Screw M8x30 | 2400 | Add to Cart |
| 7 | 853355 | Hook | 11500 | Add to Cart |
| 8 | 938790 | Return Spring | 30700 | Add to Cart |
| 8 | 0 | Add to Cart | ||
| 9a | 973180 | Connecting Elbow Assy., | 1505600 | Add to Cart |
| 9b | 973182 | Connecting Elbow Assy., | 1774000 | Add to Cart |
| 10b | 973546 | Inlet Cone Assy., | 908100 | Add to Cart |
| 11a | 973544 | Inlet Cone Assy., | 788500 | Add to Cart |
| 12 | 879920 | Outlet Elbow Assy., | 153800 | Add to Cart |
| 13 | 978640 | Outlet Tube | 13500 | Add to Cart |
| 14 | 878660 | Ball Joint | 103500 | Add to Cart |
| 15 | 878666 | Ball Joint | 103500 | Add to Cart |
| 16 | 0 | Add to Cart |
