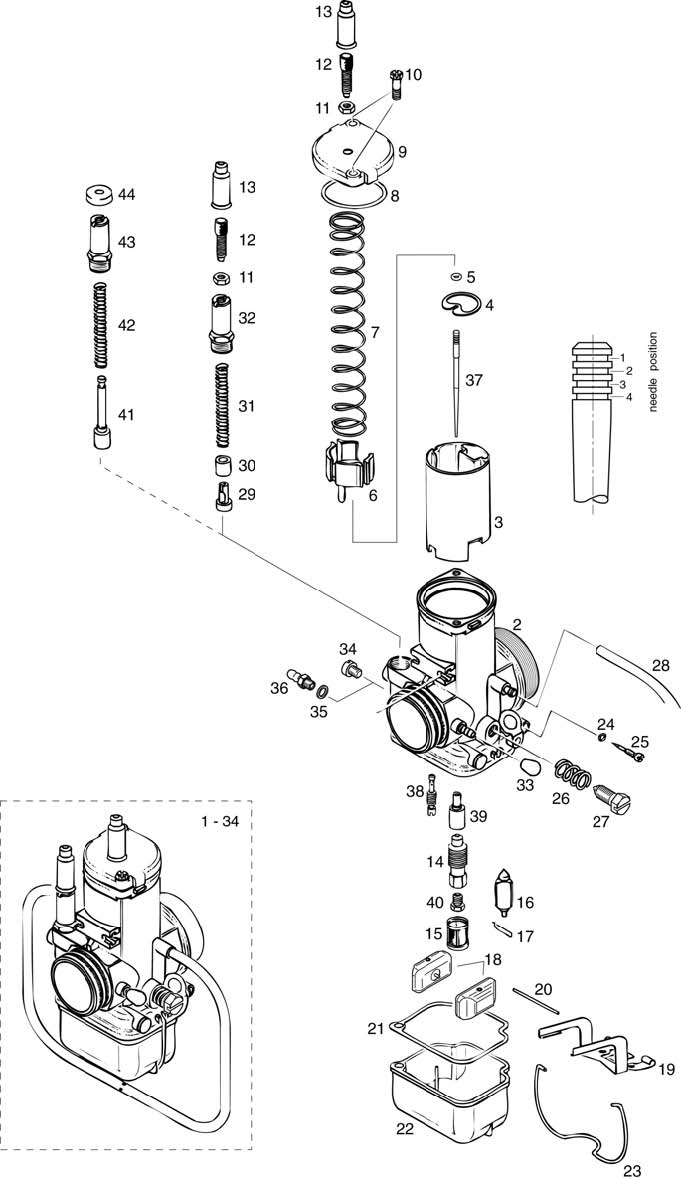

fig. 73-00-00-1
BING DOUBLE-FLOAT CARBURETOR 36 MM, MODEL 96 For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-34 | 0 | Add to Cart | ||
| 3 | 963679 | Carburetor Piston | 777800 | Add to Cart |
| 4 | 963500 | Needle Clip | 38000 | Add to Cart |
| 5 | 950430 | O-ring 2,5x1,5-n | 11500 | Add to Cart |
| 6 | 827347 | Spring Cup | 76000 | Add to Cart |
| 7 | 938655 | Carburetor Piston Spring 1,25/14 | 116200 | Add to Cart |
| 8 | 831450 | Rubber Ring | 71700 | Add to Cart |
| 9 | 963723 | Cover Plate Assy | 0 | Add to Cart |
| 10 | 241430 | Hex. Screw M5x12 | 23000 | Add to Cart |
| 11 | 942541 | Hex. Nut M6x0,75 Hight 3 Mm | 12500 | Add to Cart |
| 12 | 241440 | Adjustment Screw M6x0,75 | 30700 | Add to Cart |
| 13 | 260370 | Rubber Grommet | 17700 | Add to Cart |
| 14 | 963700 | Mixing Tube | 135700 | Add to Cart |
| 15 | 261625 | Sleeve | 76000 | Add to Cart |
| 16 | 261704 | Float Needle Valve W. Viton Tip | 235600 | Add to Cart |
| 17 | 261710 | Float Needle Clip | 13400 | Add to Cart |
| 18 | 861189 | Floats Qty 2 | 257600 | Add to Cart |
| 19 | 861192 | Float Bracket | 41200 | Add to Cart |
| 20 | 929702 | Pin | 33200 | Add to Cart |
| 21 | 830722 | Gasket | 203100 | Add to Cart |
| 22 | 261013 | Float Chamber Assy., | 391000 | Add to Cart |
| 23 | 963180 | Spring Clip | 165300 | Add to Cart |
| 24 | 831713 | O-ring Din 3771-3,2x1,8 | 10000 | Add to Cart |
| 25 | 963155 | Air Regulating Screw | 120000 | Add to Cart |
| 26 | 938640 | Spring | 9600 | Add to Cart |
| 27 | 963167 | Adjustment Screw | 56300 | Add to Cart |
| 28 | 861940 | Air Vent Line | 135700 | Add to Cart |
| 29 | 963740 | Choke Piston | 135700 | Add to Cart |
| 30 | 268850 | Sleeve | 13000 | Add to Cart |
| 31 | 661050 | Compression Spring | 1600 | Add to Cart |
| 32 | 963750 | Choke Housing | 14400 | Add to Cart |
| 33 | 860610 | Nla | 0 | Add to Cart |
| 34 | 640220 | Slotted Head Screw M6x5 | 123800 | Add to Cart |
| 35 | 230415 | Gasket Ring A 6x10 Din 7603 | 500 | Add to Cart |
| 36 | 940551 | Hose Nipple, M6 | 122300 | Add to Cart |
| 37- | 963718 | Jet Needle 15k2 | 111400 | Add to Cart |
| 37- | 961043 | Jet Needle 11g2 | 111400 | Add to Cart |
| 38- | 963147 | Idle Jet 55 | 269300 | Add to Cart |
| 39- | 963691 | Needle Jet 2,68 | 169000 | Add to Cart |
| 39- | 963697 | Needle Jet 2,72 | 169000 | Add to Cart |
| 40- | 268982 | Main Jet 145 | 86400 | Add to Cart |
| 40- | 268986 | Main Jet 165 | 86400 | Add to Cart |
| 41-48 | 995667 | Hand Lever Choke Set | 863100 | Add to Cart |
| 41 | 268847 | Choke Piston With Gasket | 147600 | Add to Cart |
| 42 | 239730 | Compression Spring | 28100 | Add to Cart |
| 43 | 261770 | Choke Housing | 462000 | Add to Cart |
| 44 | 260490 | Rubber Cap | 28800 | Add to Cart |
