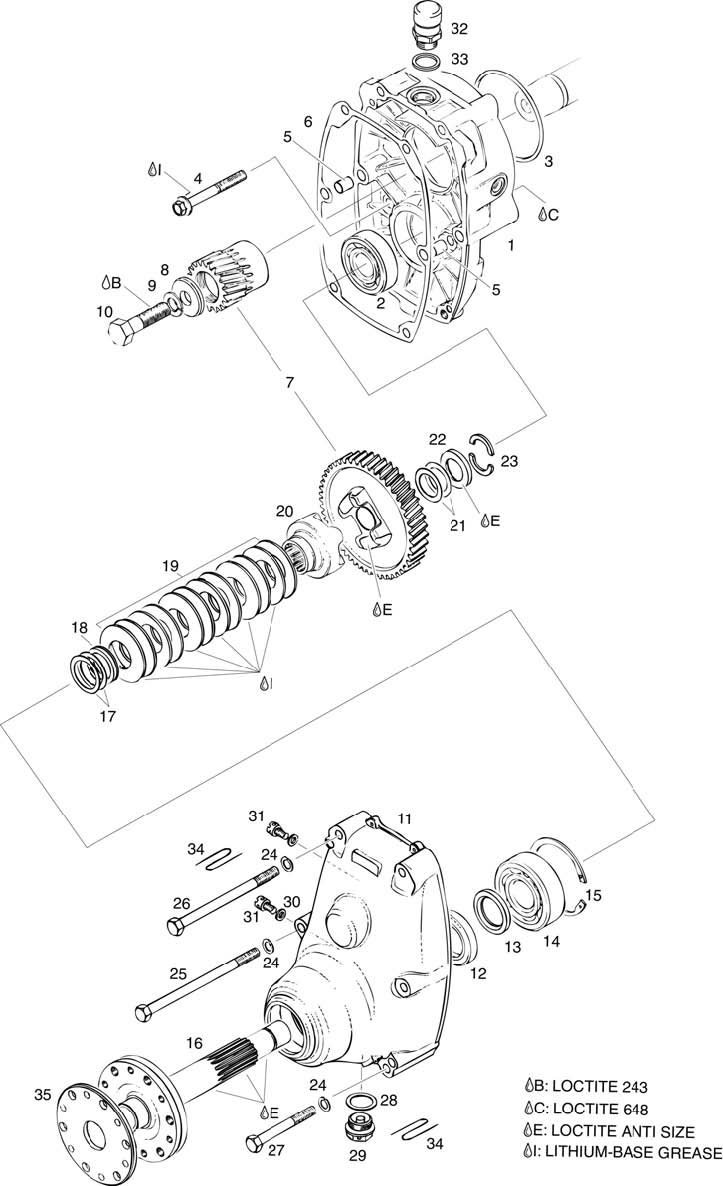

fig. 72-10-00-1
REDUCTION GEARBOX “B”: I=2.00, I=2.24 OR I=2.58 For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 810109 | Gear Housing | 1175500 | Add to Cart |
| 2 | 932093 | Ball Bearing 6304 Cs 20-52-15 | 52600 | Add to Cart |
| 3 | 850430 | O-ring 75-2,5 | 1200 | Add to Cart |
| 4 | 841307 | Collar Hex. Screw M8x65 Sw 11 | 8900 | Add to Cart |
| 5 | 929670 | Dowel 10x13 | 14600 | Add to Cart |
| 6 | 930536 | Gasket | 23000 | Add to Cart |
| 7- | 886200 | Gear Set B 2,58 | 5096400 | Add to Cart |
| 7- | 886202 | Gear Set B 2,24 | 2886200 | Add to Cart |
| 7- | 886204 | Gear Set B 2,00 | 3381200 | Add to Cart |
| 8 | 827788 | Washer 13/34/5 | 68300 | Add to Cart |
| 9 | 945765 | Lock Washer Vhv 13 | 14000 | Add to Cart |
| 10 | 841656 | Hex. Screw 1/2-2ounfx2 | 28500 | Add to Cart |
| 11 | 910373 | Gear Cover | 1403000 | Add to Cart |
| 12 | 850055 | Oil Seal 30x47x7/7,5 | 16500 | Add to Cart |
| 13 | 827851 | Distance Ring 26/36/4,5 | 72900 | Add to Cart |
| 14 | 932820 | Ball Bearing 6305 C3 / 25-62-17 | 121500 | Add to Cart |
| 15 | 445070 | Retaining Ring 62x2 | 6500 | Add to Cart |
| 16 | 837024 | Nla | 0 | Add to Cart |
| 17- | 944470 | Shim 25,5/34/o,2 | 1600 | Add to Cart |
| 17- | 944471 | Shim 25,5/34/o,3 | 1400 | Add to Cart |
| 17- | 944472 | Shim 25,5/34/o,5 | 2500 | Add to Cart |
| 17- | 944473 | Shim 25,5/34/1 | 1400 | Add to Cart |
| 17- | 944474 | Shim 25,5/34/0,1 | 5000 | Add to Cart |
| 18 | 847621 | Distance Ring | 249000 | Add to Cart |
| 19 | 939020 | Disk Spring B50 | 47500 | Add to Cart |
| 20 | 958771 | Dog Hub | 674400 | Add to Cart |
| 21 | 944469 | Thrust Washer 20,5/30/0,8 | 6000 | Add to Cart |
| 22 | 827841 | Angular Ring | 249000 | Add to Cart |
| 23 | 827862 | Ring Half | 285000 | Add to Cart |
| 24 | 945832 | Lock Washer A8 | 370 | Add to Cart |
| 25 | 941351 | Hex. Screw M8x125 | 21900 | Add to Cart |
| 26 | 941171 | Hex. Screw M8x110 | 6500 | Add to Cart |
| 27 | 841302 | Hex. Screw M8x65 | 3100 | Add to Cart |
| 28 | 552280 | Gasket Ring 18,2/24/1 | 2000 | Add to Cart |
| 29 | 840270 | Magnetic Plug M18x1,5 | 64100 | Add to Cart |
| 30 | 230415 | Gasket Ring A 6x10 Din 7603 | 500 | Add to Cart |
| 31 | 841782 | Capstan Screw M6x10 | 32200 | Add to Cart |
| 32 | 941115 | Air Vent Screw M18x1,5 | 100000 | Add to Cart |
| 33 | 931200 | Gasket Ring 18,2/22/2 | 10400 | Add to Cart |
| 34 | 0 | Add to Cart | ||
| 35 | 827830 | Cover Washer | 294400 | Add to Cart |
